CS61C

Introduction

Learning Outcomes

Get acquainted a brief history of computers
Understand why writing programs in C allow us to exploit underlying features of the architecture (intentionally or unintentionally)

The Stored-Program Computer

Let’s understand a little bit about the basics of computer organization. One of the earliest computers was the ENIAC at UPenn in 1945-46.

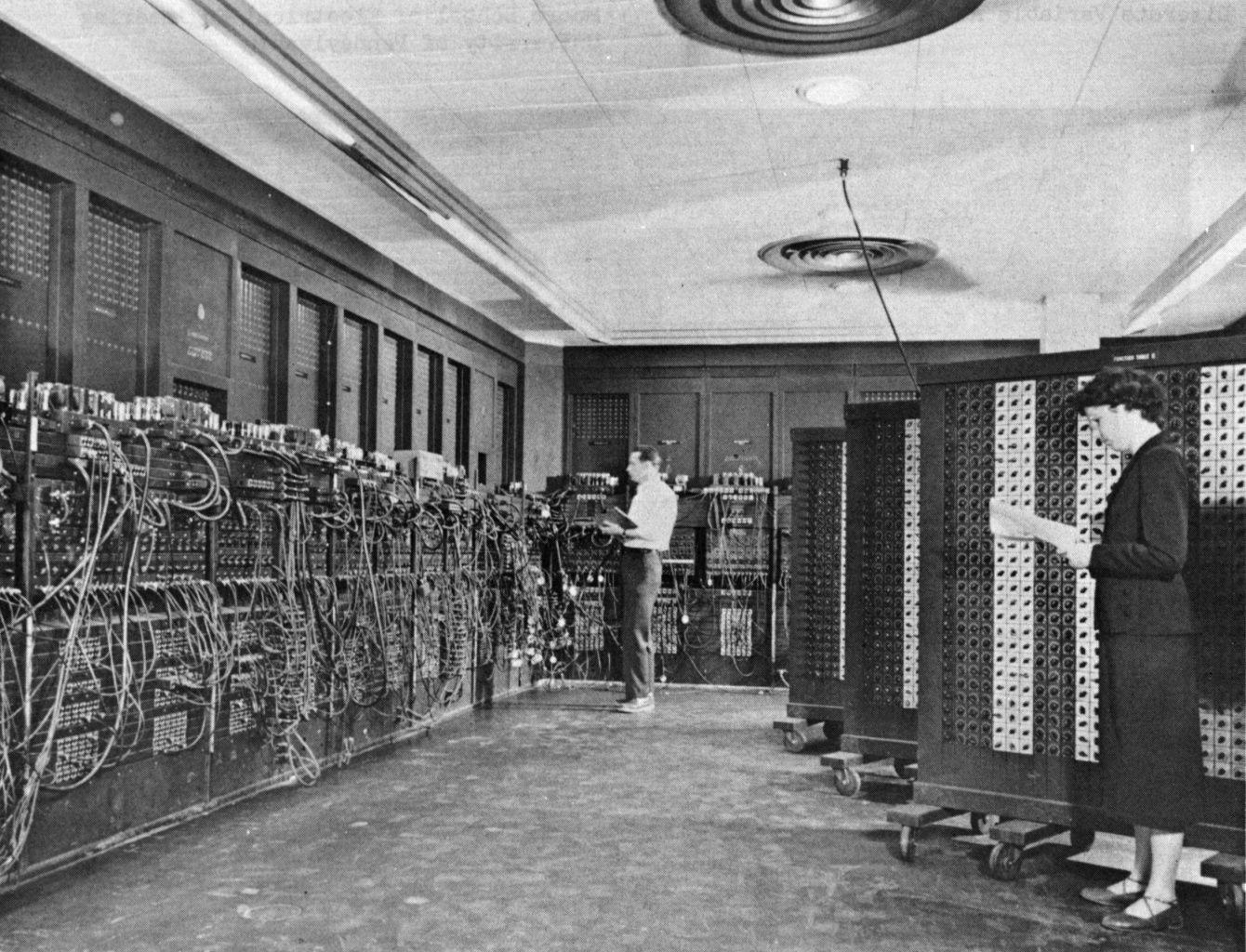

A black and white photograph captures a large room filled with the tall electronic panels and tangled patch cables of the ENIAC computer system. Two people are positioned among the equipment, including a woman in the foreground standing beside a large control cabinet while holding a document.

The ENIAC was the first electronic general-purpose computer. Following World War II, it was often used to compute trajectories of ballistics. It multiplied in 2.8 milliseconds! The problem is, it took two or three days to program.

Note the patch cords in #fig-eniac; after reading the schematic, a human would write the patch cords. Not to mention—vacuum tubes were breaking all the time.

Let’s take a moment to also recognize the folks you see in the picture. Many of the first programmers were computers:

Early programmers were often women who were part of the UPenn group, and they don’t get enough press for being among the early programmers of the day. Watch the movie Hidden Figures (2016) to learn about these early female programmers and mathematicians.

Next, the EDSAC at Cambridge (1949) was the first general stored-program computer.

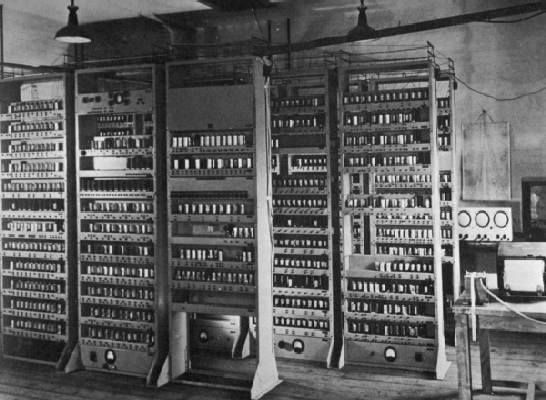

A black and white photograph shows multiple tall vertical racks of the EDSAC computer system densely populated with vacuum tubes and electronic components. The image captures the large-scale physical architecture of early stored-program computers within a laboratory setting.

Notice that #fig-edsac no longer has patch cords. The EDSAC was designed around an astounding concept: the stored program, meaning that data doesn’t just have to represent numbers; it can represent the program itself. It meant that bits can be bits, and bits can be a program, too. Nowadays, we take this concept for granted; we download an app on our phone and we don’t even think about it.

Side note: At the time, the notion of the 8-bit byte was less standard. The EDSAC used 35-bit binary two’s complement words to represent a range of information, from integers to program instructions.

Great Idea #1

Abstraction. Anything can be a string of bits: data, numbers, instructions, etc.

Throughout this course, we will see how all of the layers in #fig-great-idea-abstraction are tied together by this idea.

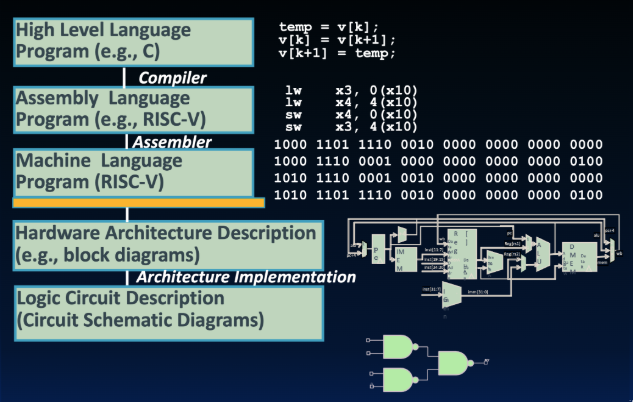

Hierarchical diagram of computer abstraction with five stacked levels from top to bottom: a high-level language program (C code snippet), RISC-V assembly, binary machine language, a hardware architecture block diagram of the processor datapath and memory interfaces, and a logic-circuit level with gate-level schematics. Arrows or grouping show that each upper layer compiles or refines into the next, ending at physical gates that implement the ISA.

High-level programming languages

In #fig-great-idea-abstraction, we refer to C as a high-level language. This will seem ridiculous to you: After all, Python is high-level, and C is low-level. A high-level programming language is a language that often deals with variables, loops, etc., instead of the specifics of processor architecture.

High-level language code compiles down to assembly code, which then is then assembled into machine code (i.e., bits). We will revisit these two low-level program representations very soon.

Back in the day, C was revolutionary. It facilitated the first operating system (Unix) not written in assembly. Unix is a portable OS, meaning you can write the code for the OS and then move it to a different architecture. That was a big deal! If you write in assembly, you have to customize it for that specific machine. But if you can compile it down from a level above—that’s abstraction, the most important idea in this class.

Why C?

1. Learn computer science, not programming languages. At Berkeley, we take pride in having three different languages in our lower division EECS courses: Python, Java, and C. The goal is never just to teach you a language; it’s to teach you computer science. We want you to be fluent so you can decide which language to choose for a particular problem.

2. Exploit underlying features of the architecture. We learn C in this class because we can then write programs that involve memory management, parallelism, and more. However, note that C is low enough to the silicon that you can be poking at bits and have more control. It also makes it hard to program!

We’re going to show you how much trouble you can get into with pointers and memory leakages. C is not strongly typed, so the compiler can’t check everything. It’s almost like a car where you’ve stripped away all the plastic and all you have is wires… and you’re jump-starting it by rewiring those wires. Fun times. More later.

3. After over 40 years, one of the most popular programming languages is C (and its derivatives, C++, Objective C, C#). We will soon see that Java adapted a lot from C—because most programmers were already familiar with C syntax.

C: Disclaimers

C is much more “low level” than other languages you’ve seen. It is inherently unsafe (more later), has terrible keyword conventions, bizarre variable scoping, …, the list goes on.

All things considered, C is a reasonable choice for teaching introductory computer architecture. When you write programs in the real-world, however, you have better options, depending on what sort of program you’re going for.

If performance matters:

Rust is like a “C but safe” language—if you want the power of C but with more safety. By the time your C program is (theoretically) correct w/all necessary checks, it should be no faster than Rust.
Go: “Concurrency”: Practical concurrent programming takes advantage of modern multi-core microprocessors.

If scientific computation matters:

Python has good libraries for accessing GPU-specific resources. The Python interpreter is written in C. Python can use Cython to call low-level C code to do work. PyTorch, a popular Python library for machine learning, uses C++.
Spark can manage many other machines in parallel.

The C Language Is Constantly Evolving

The C programming language standard has had several significant revisions since its inception in 1972. Just like Python 2 vs Python 3 – same language, but slightly different syntax/features.

A history, from StackOverflow:

Pre-1989: K&R C (note K&R 1st ed 1978, 2nd ed 1988)
1989/1990: ANSI C
1999: C99
2011: C11
2017: C17
2024: C23

We will teach the C17 standard in this course, which is the version of C assumed by gcc on our course servers. What’s gcc? You’re about to find out!

Try it yourself!

Final disclaimer: you’re not going to learn to code C just by watching videos or reading a book. You have to try it yourself. Go grab an editor and start firing it up!

We will try our best to cover the key aspects of the C language in these course notes. But you should still have a C reference handy. The K&R book (Kernighan & Ritchie, 2nd edition, 1988 the version with the ANSI red logo) is a must-have for every C programmer.
