CS61C

B-Type

Learning Outcomes

Translate between B-Type assembly instructions and machine instructions.
Identify which instructions use PC-relative addressing and which use absolute addressing.

RISC-V Extension: 16-bit instructions

RISC-V Base ISA for RV32, RV64, RV128 all have 32-bit wide instructions. The “Base” ISA is extended by instruction extensions that do a range of items: general multiplication, different architecture support, etc.

One such extension is the 16-bit compressed extension extension, which accommodates variable-length instructions that are multiples of 16-bits in length. To proactively accommodate this and other extensions, the RISC-V Base ISA encodes half-word branch offsets, even when there are no 16-bit instructions in the base set.

In this course, we only focus on RISC-V processors with 32-bit instructions. Implications of this half-word branch offset:

Half of possible branch targets will be errors RISC-V conditional branches can only branch to $\pm 2^{10}$ instructions away from the PC.

B-Type vs. I-Type, S-Type: Immediate Formats

Recall a core component of RISC-V design is to keep fields as consistent as possible across instruction formats. We have already seen how source/destination register fields rs1, rs2, and rs2 are consistent across formats, allowing clearer consistency of which registers to read and which to write.

RISC-V also tries to keep bit positions of immediates consistent. The “swirling” of immediate bits in @fig-ISB-type-comparison actually simplifies hardware design!

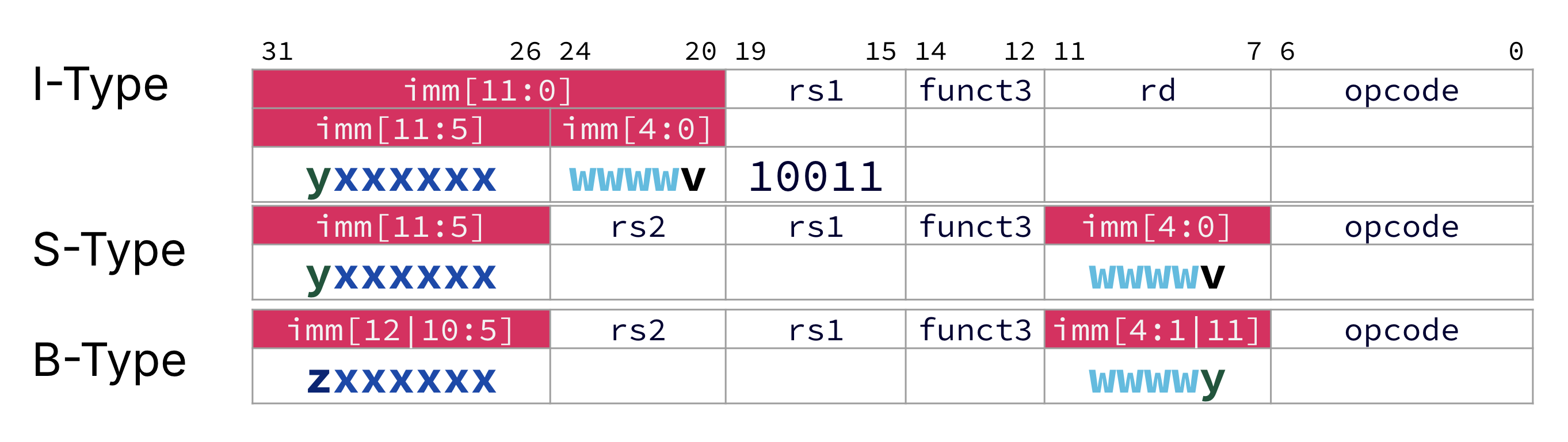

Side-by-side comparison of I-type, S-type, and B-type instruction formats, showing how the same immediate bits are packed into each format and how B-type instructions rearrange bits 11 and 12 relative to I-type and S-type while keeping rs1, rs2, funct3, and opcode field bit positions aligned.

Observations:

Across I-Type, S-Type, B-Type, the instruction bit inst[31] is always the imm’s sign bit.
The 13-bit immediate of B-type has an imm[0] = 0, so B-Type tries to keep imm[10:5], imm[4:1] in the same places as in the I-Type and S-Type, e.g., instruction bits inst[26:30] and inst[8:11].
S-Type, B-Type instruction formats have just two bits that change meaning:
- The instruction bit inst[31] is immediate bit imm[11] in S-Type and imm[12] in B-Type.
- The instruction bit inst[7] is immediate bit imm[0] in S-Type and imm[11] in B-Type.
